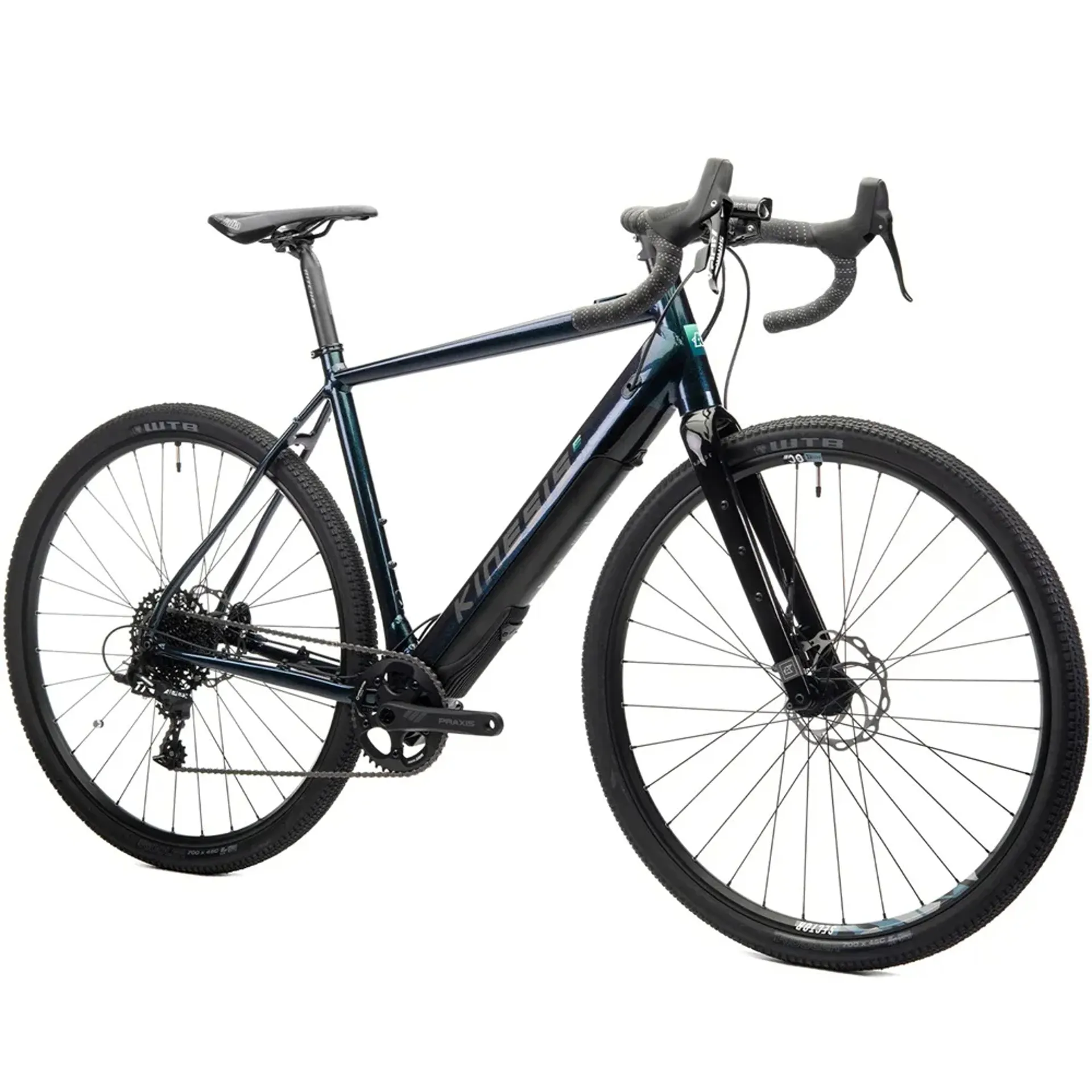

Kinesis Range Drop Fazua Lrg

Brand:Kinesis UK

Code:K-BIKE-RANGE-GR-5L

Broaden your horizons and push your limits with RANGE, our new E-gravel bike, powered by Fazua.

The RANGE electric bike features a premium aluminium frameset based on our award-winning adventure platform. We’ve paired this with the excellent Fazua Evation Motor, known for its smooth, natural power delivery and lightweight performance.

When tackling inclines or accelerating from a standstill, the Fazua motor kicks in to provide up to 250W of assistance right when you need it most. Above the legal 15.5mph limit, the Fazua motor disengages from your bike and becomes unnoticeable, so you can focus on enjoying the ride without resistance. The battery is lightweight and easy to remove, so you can easily extend your range, and only every carry as much battery as you need. Now with Black Pepper Software Update.

RANGE features high performance components from the likes of Ritchey, Sector, WTB and SRAM for flawless performance over multiple terrain. The 1x drivetrain, hydraulic brakes, 45C tubeless ready tyres, and flared bars are all the right ingredients to ensure RANGE is the perfect match to your sense of adventure.

The RANGE drop bar e-bike is not just for new or less fit cyclists, and it does not eliminate the satisfaction of having a good workout on the bike. Instead, it enhances the experience of cycling, enabling you to ride further, faster, or more frequently than you could before. Imagine having a strong leg day, everyday! No matter your fitness, RANGE will maximise your enjoyment from each and every ride.

Technical Information
• Aluminium Frame with 50C Tyre Clearance.

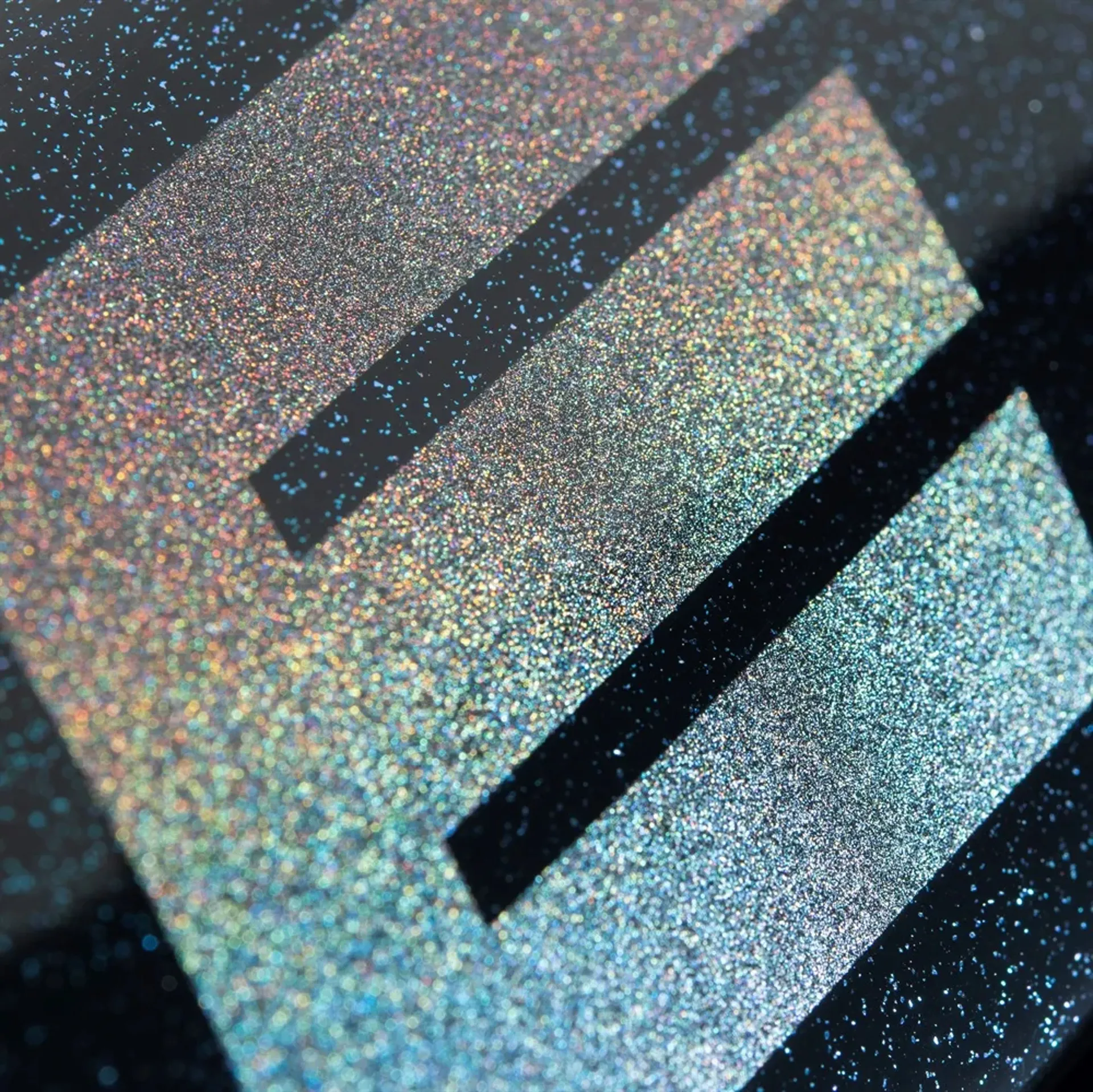

• Galactic Iridescent Paint Job.
• Full Carbon RANGE Fork with Luggage Mounting Points.
• Fazua Evation Drive System with Top Tube Remote. Now with Black Pepper Software Update.
• Removable 252Wh Battery.
• Rack and Mudguard Compatible.
• SRAM Apex 1x Drivetrain.
• WTB Riddler 45C Tyres.
• Weight: 15kg (Medium).


ColourGalactic
Weight15kg (Medium)
FrameKinesis RANGE lightweight 6061 Hydroformed Aluminium Frame
ForkKinesis Range Carbon Fork
Shift LeversSRAM Apex 1x11
Rear DerailleurSRAM Rival
BrakesSRAM Apex - 160mm Front and Rear
CassetteSRAM PG1130 11-42
CranksetPraxis Alloy E-Crank 42t - S-M 165mm, L-XL 170mm
RimsSector GCe E-Specific 32h Aluminium Rim. Eyeletted and Pinned
HubsSector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Spokes14g Black
TyresMaxxis Rambler 700x45c 120TPI EXO Protection
SeatpostRitchey 2-Bolt 350mm x 31.6 diameter / 25mm offset
SaddleSelle Italia X3
HandlebarKinesis Double Butted Gravel Bar
StemKinesis 3D Forged 6061; S-M 80mm, L-XL 90mm
HeadsetFSA no.42 Cartridge Bearing
Bar TapeKinesis Black Cork Tape
Sizing Information
Kinesis Range SizeSMALLMEDIUMLARGEX-LARGE
Seat Tube Length C-T (mm)440490540570
Top Tube Length Effective (mm)534551574595
Head Tube Length (mm)131157185224
Head Tube Angle (°)70.570.57171
Seat Tube Angle (°)747473.573.5
BB Drop (mm)75757270
Chainstay Lenght (mm)440440440440
Front Centre (mm)602.7621635657.9
Wheelbase (mm)1032105010651089
Stack (mm)555580605640
Reach (mm)375385395405
Fork Length (mm)395395395395
Fork Rake (mm)50505050
Trail (Actual) (mm)74747171
Standover A* (mm)708745.834
Standover B* (mm)756780.862
Handlebar Width (mm)420440460460
Stem Length (mm)80809090
Crank Length (mm)165165170170
Seatpost Length (mm) (350 x 31.6 / 25 offset)350350350350
Seatpost Clamp (mm)34.934.934.934.9
*Standover A is measured from the floor through the bottom bracket to the top of the top tube
*Standover B is measured from the floor through the centre of the top tube to the top of the top tube
