An aggressive and responsive geometry. Super-lightweight, stiff and extra-strong tubing. Aerodynamic on and off-road. Clearance for road and MTB wheels and tyres. The 3T Exploro LTD frameset is for those who enjoy taking the rough with the smooth.
An aggressive and responsive geometry. Super-lightweight, stiff and extra-strong tubing. Aerodynamic on and off-road. Clearance for road and MTB wheels and tyres. The 3T Exploro LTD frameset is for those who enjoy taking the rough with the smooth.
3T

3T Exploro LTD frameset Black/Grey

£3,950.00
Click & Collect for Free
Earn
 in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

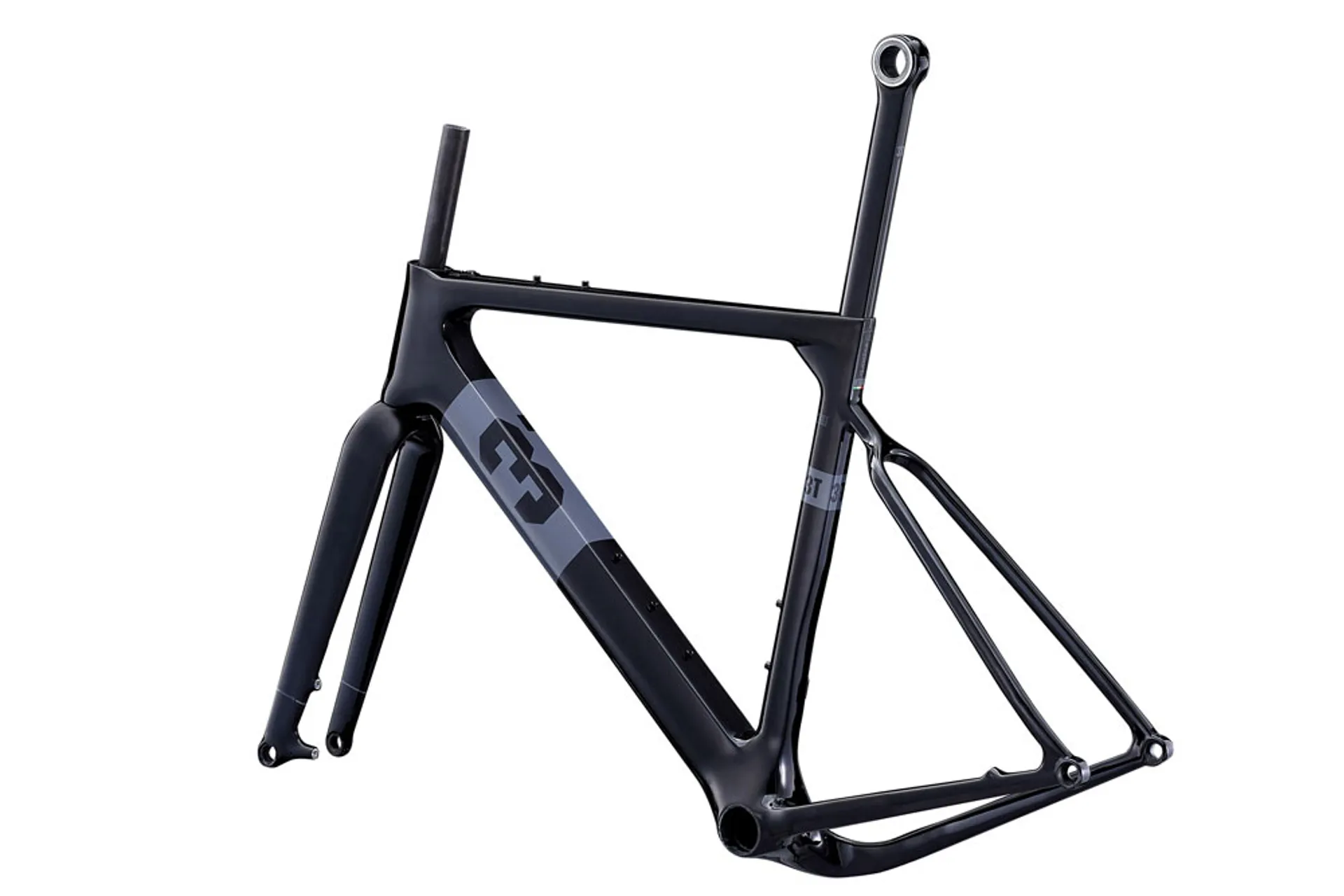

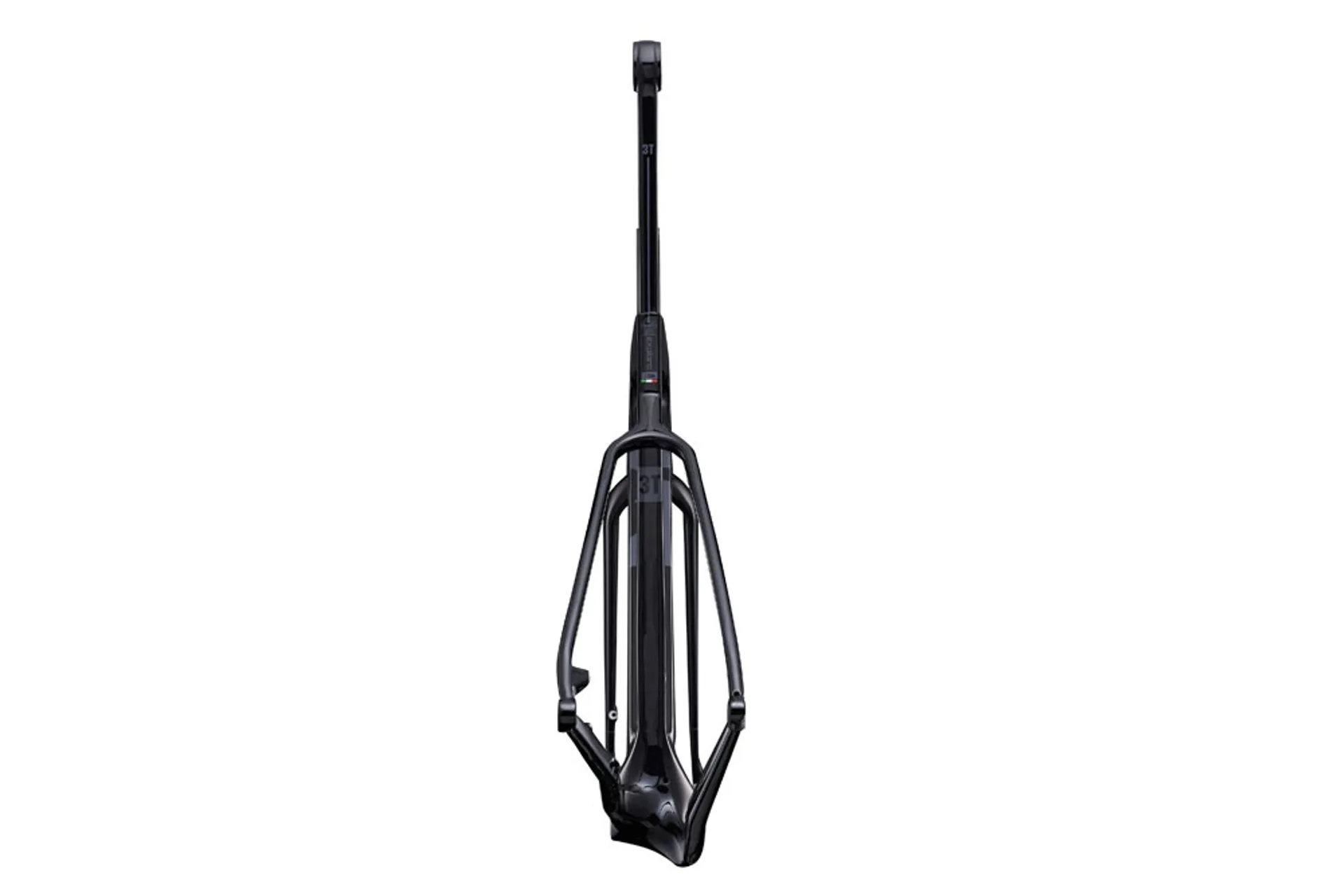

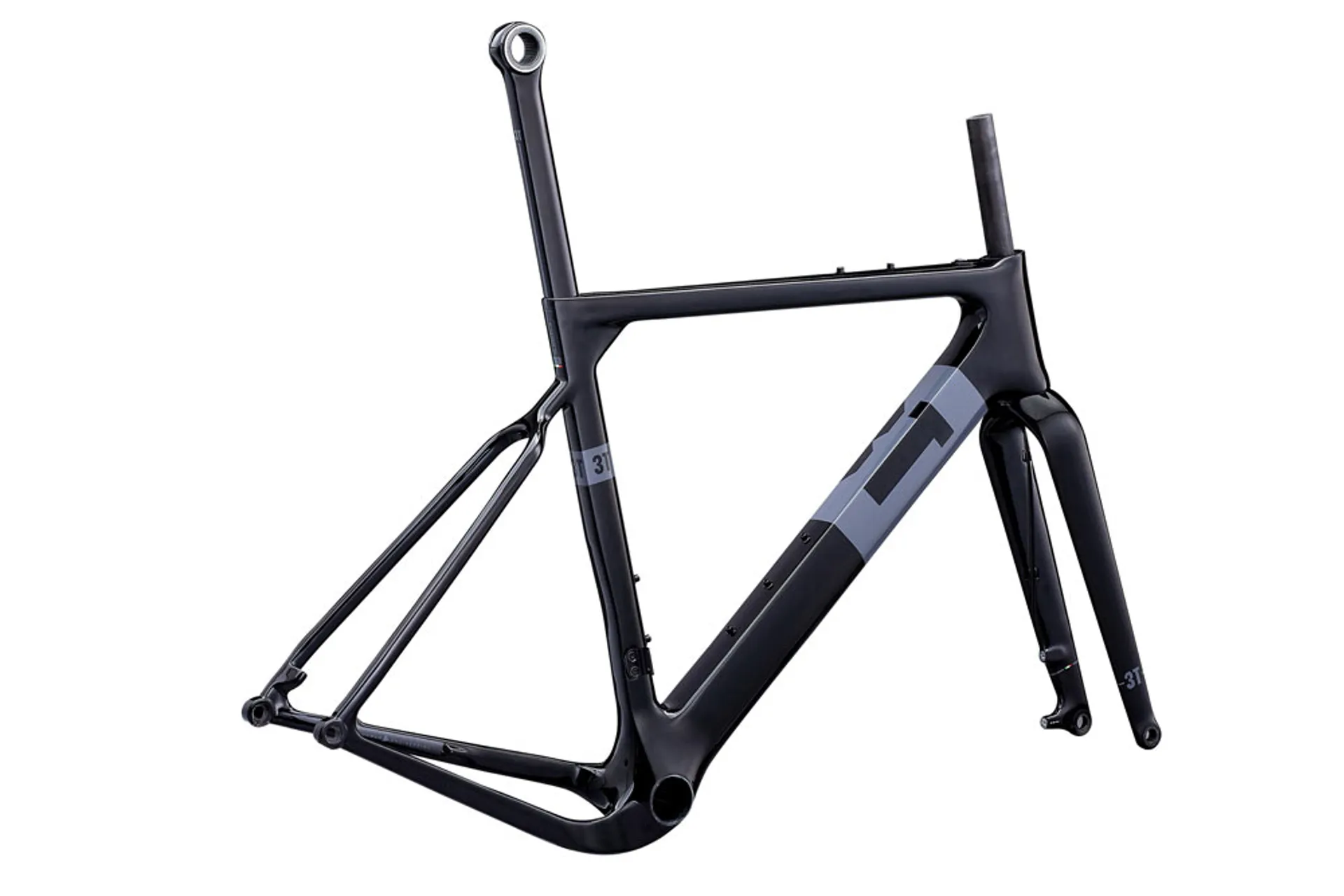

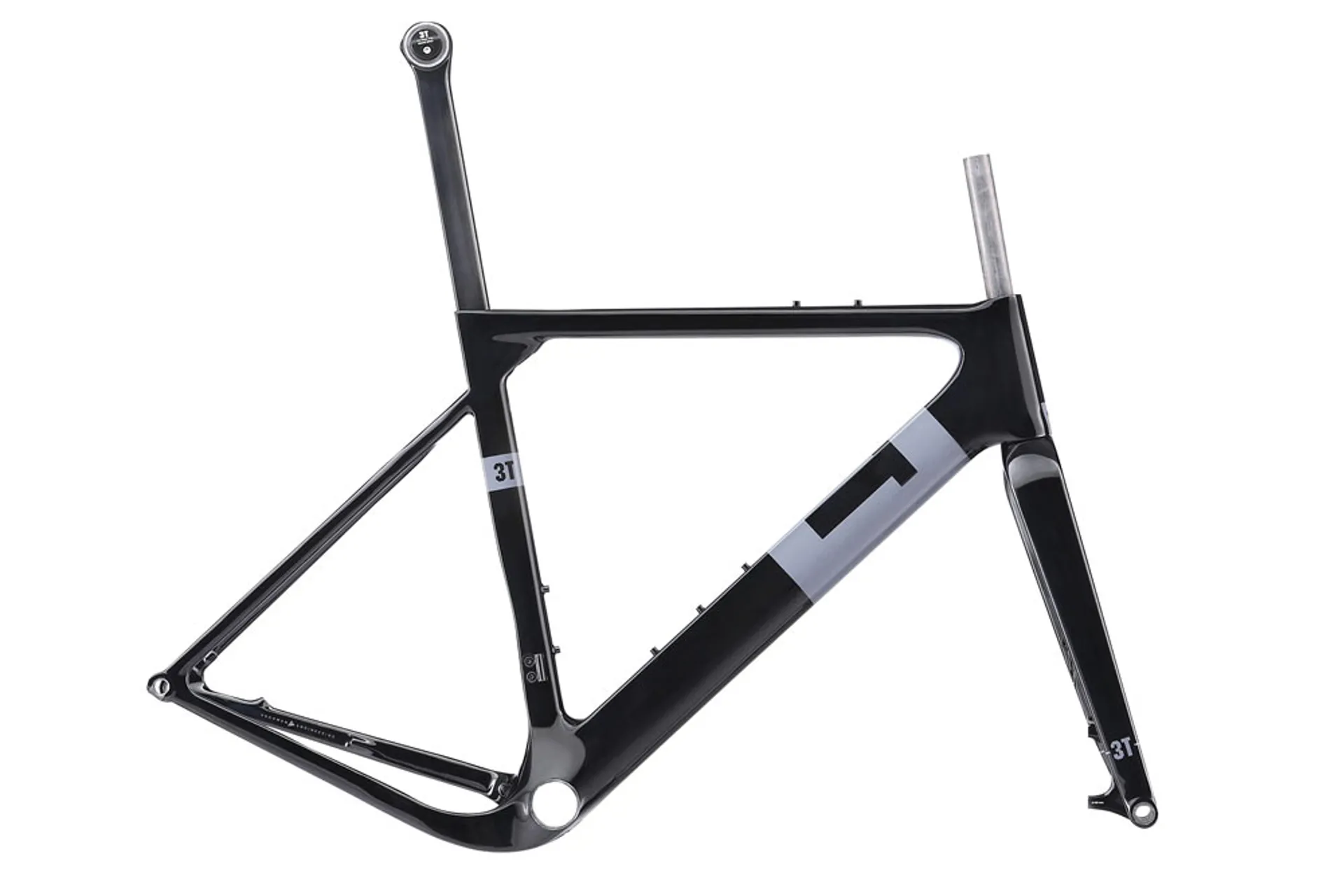

3T Exploro LTD frameset Black/Grey Information

Season : 2017

Brand : 3T

Code : 3TLTD-5130BD

3T's Exploro frame excels on multiple surfaces, providing a unique aero-gravel bike experience. A GravelPlus frameset it caters for either 700C or 650B wheels, with up to 700x40mm or 650x53mm tyres, a design feature currently unique to Gerard Vroomen gravel bikes. Vroomen, formerly of Cervelo, is head of design at 3T and his impressive engineering mind has left its hallmarks all over the Exploro. Instead of testing aerodynamics at the industry standard 30mph, the Exploro was tested at a more realistic 20mph, meaning a rider feels the benefits of aerodynamic design at lower speeds, resulting in rather atypical aerodynamic design. The Exploro possesses a massive 50mm wide square down tube, fitting in with 3T's Sqaero philosophy. The down tube is designed to catch the airflow coming off the extra wide tyres and is squared off to reduce drag on the side of the down tube. The rest of the tubing tapers towards the rear of the bike for optimal airflow. Vroomen and 3T believe in this aerodynamic philosophy so much that they have presented evidence to suggest a muddy Exploro equipped with knobbly 40c tyres and two water bottles is subject to less drag than a clean round tubed frame with 28c slick tyres, as shown by image 7.

With aerodynamic statistics such as that, why wouldn't you get the Exploro muddy? Made from super-strong lightweight carbon the Exploro LTD frame is very light without sacrificing any structural strength. Further benefiting the frames rigidity and resilience is the Exploro's 50/75mm wide frontal cross section, optimal for strength and stiffness, key attributes for a gravel bike. Using this stiff and square tubing on a frame with such a short and aggressive geometry makes the Exploro incredibly responsive in acceleration and handling, both on and off-road, making it both incredible on descents and twisty trails alike. Weighing a minute 950g the LTD frameset is exceptionally light and having quite possibly the largest bottom bracket I've ever seen on a gravel bike, the Exploro LTD is not just aerodynamic at higher speeds, it bolts off the line and glides up ascents. Other nifty innovations such as neat and tidy internal cable routing and the option to mount a single water bottle in a lower position for optimal aerodynamics on race day, show Vroomen and 3T's commitment to producing something truly special. Full of innovation and the result of considered lateral thinking the 3T Exploro is an excellent frame capable of incredible performance both on and off-road and really is for those who want to explore.

Technical Information

FRAME SIZES

S - M - L - XL

FORK

3T Luteus II TEAM 15mm thru axle (included)

BB

BB386EVO

CHAINRING FIT

Max inner ring: 36T
Max outer ring: 50T
Max single ring (offset ring): 46T
Max single ring (flat ring): 50T
The above applies to round rings, oval rings come in various shapes and need to be measured individually.

HEADSET

Integrated tapered IS42/28.6 | IS52/40

SEATPOST

3T Charlie Sqaero

REAR AXLE

142X12mm thru axle

REAR BRAKE

Post mount for 160mm disc

CABLE ROUTING

Internal via interchangeable FlipTop covers for 1x10/11, 2x10/11, Di2, eTap

BAG MOUNT

100mm front-post-to-bearing-bore-edge

INCL. IN BOX

Frame, fork, seatpost, seatpost internal clamp, front thru axle, 1 front and 2 rear derailleur hangers, front derailleur cable liner, noise-cancelling foam sleeve for rear derailleur housing and brake hose

WEIGHT

950g
