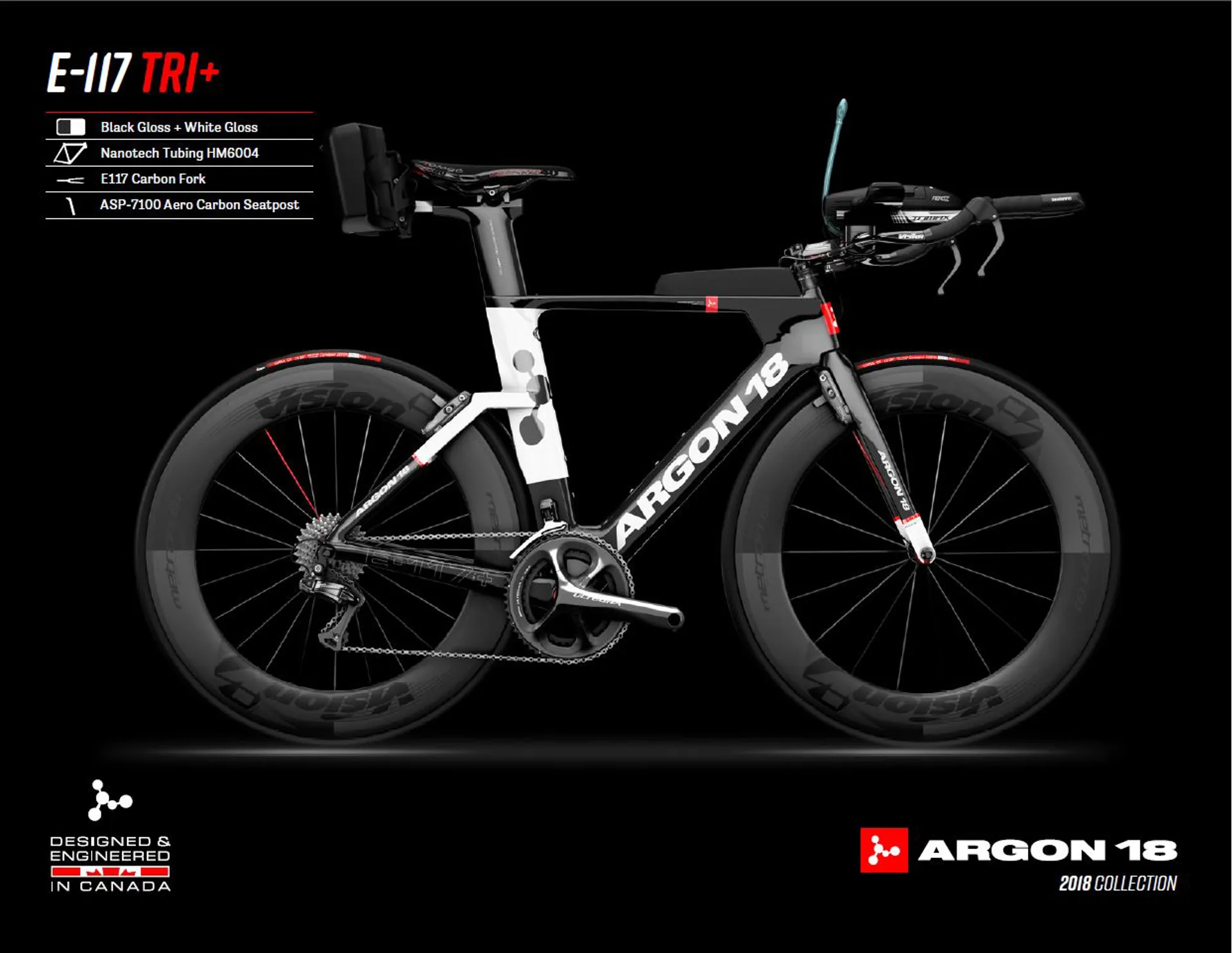

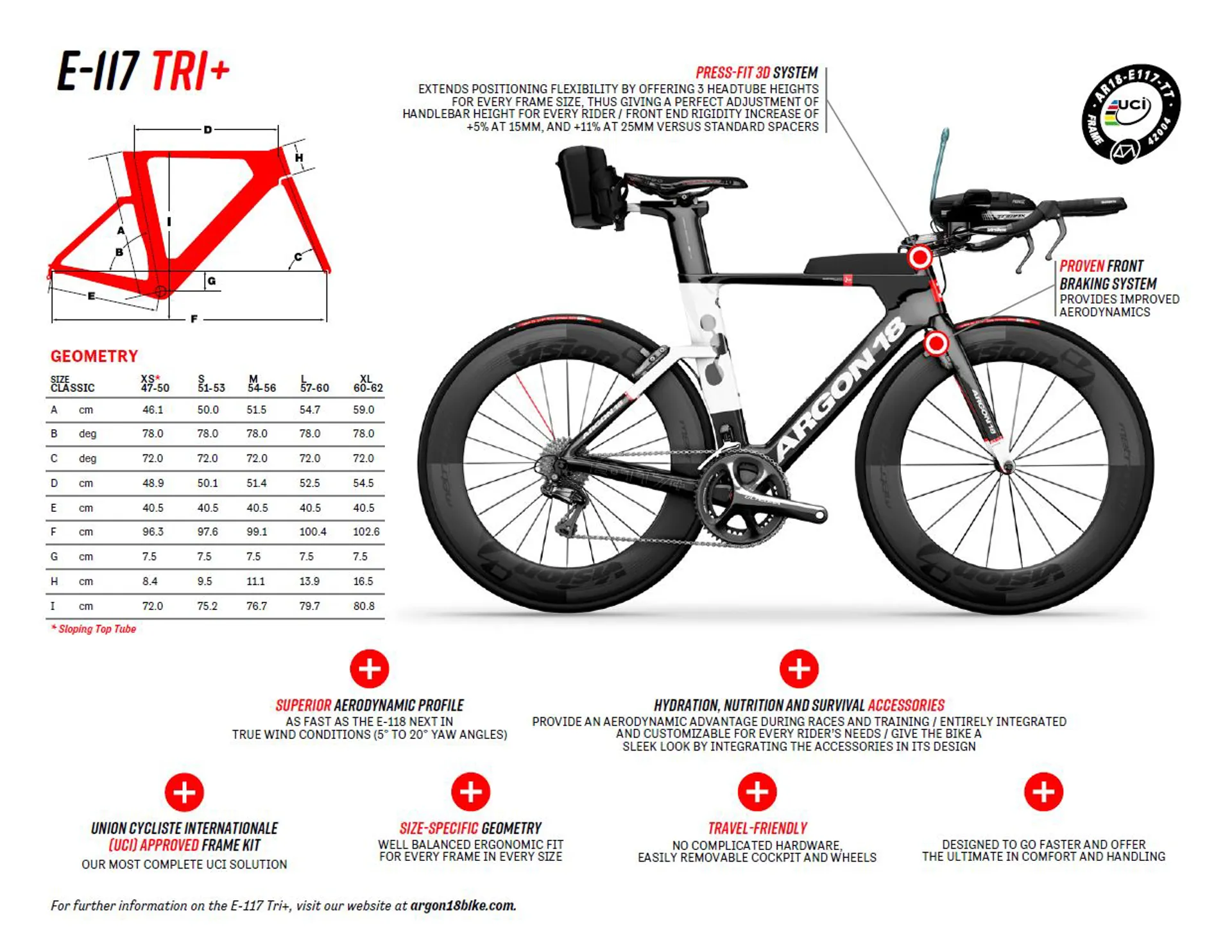

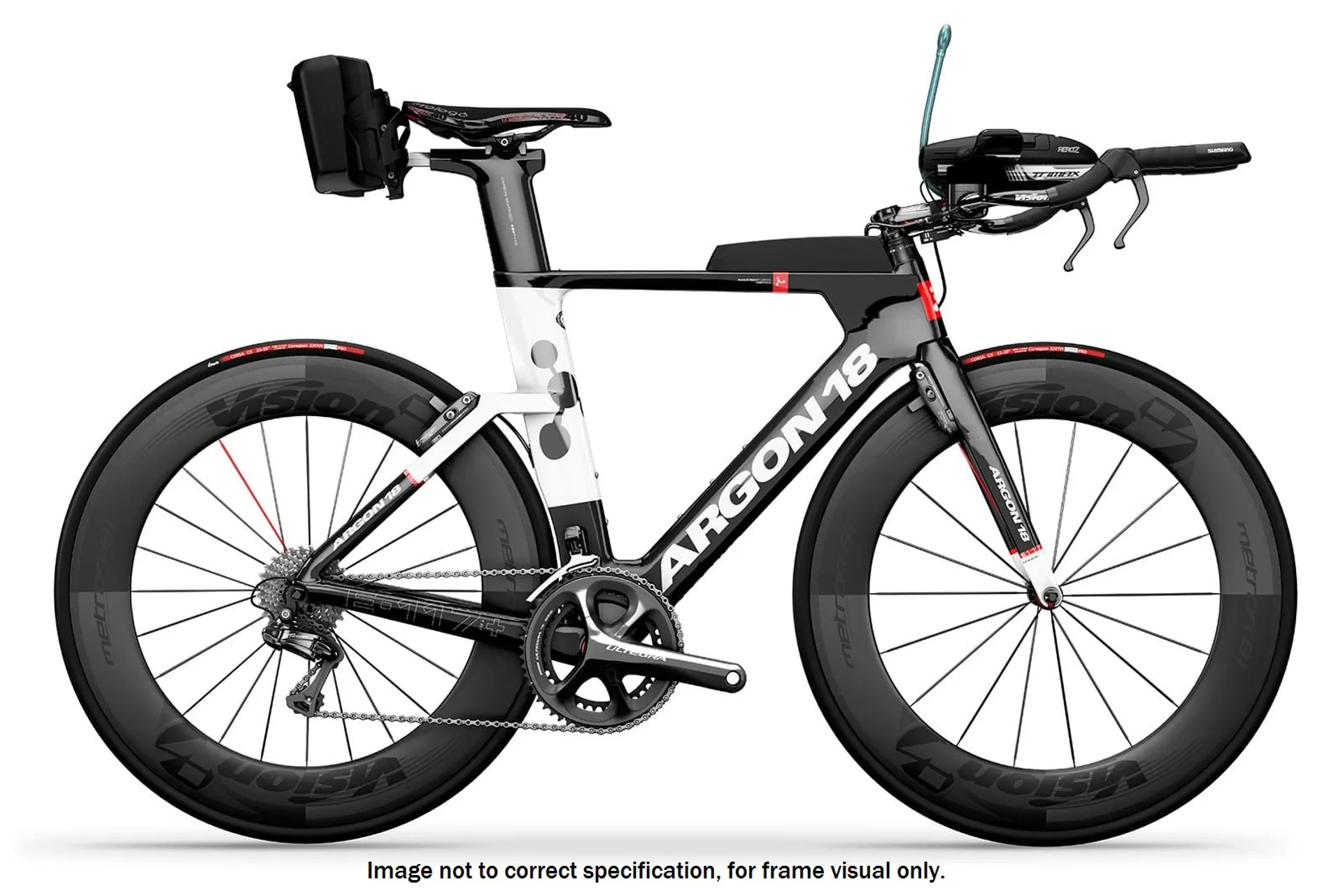

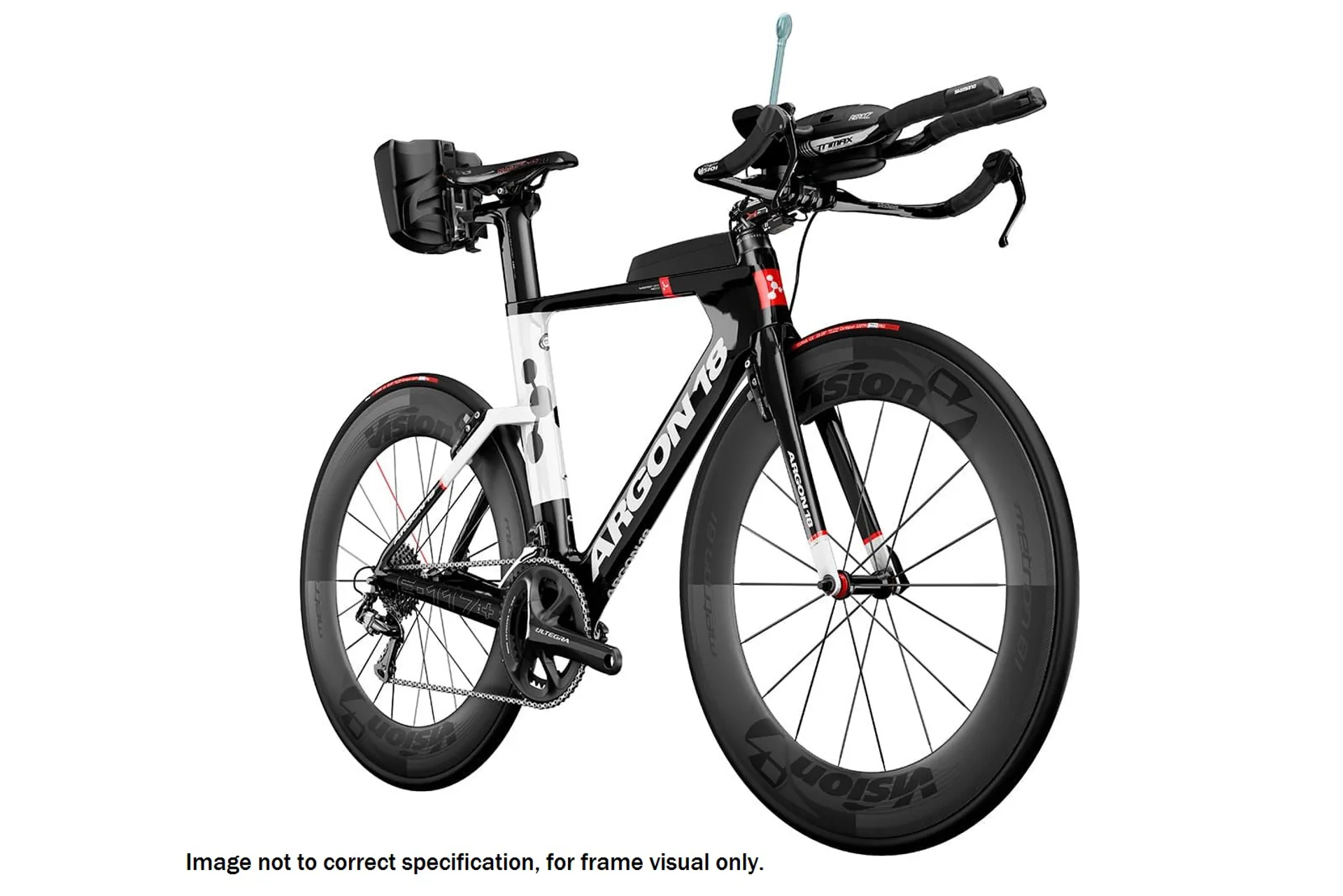

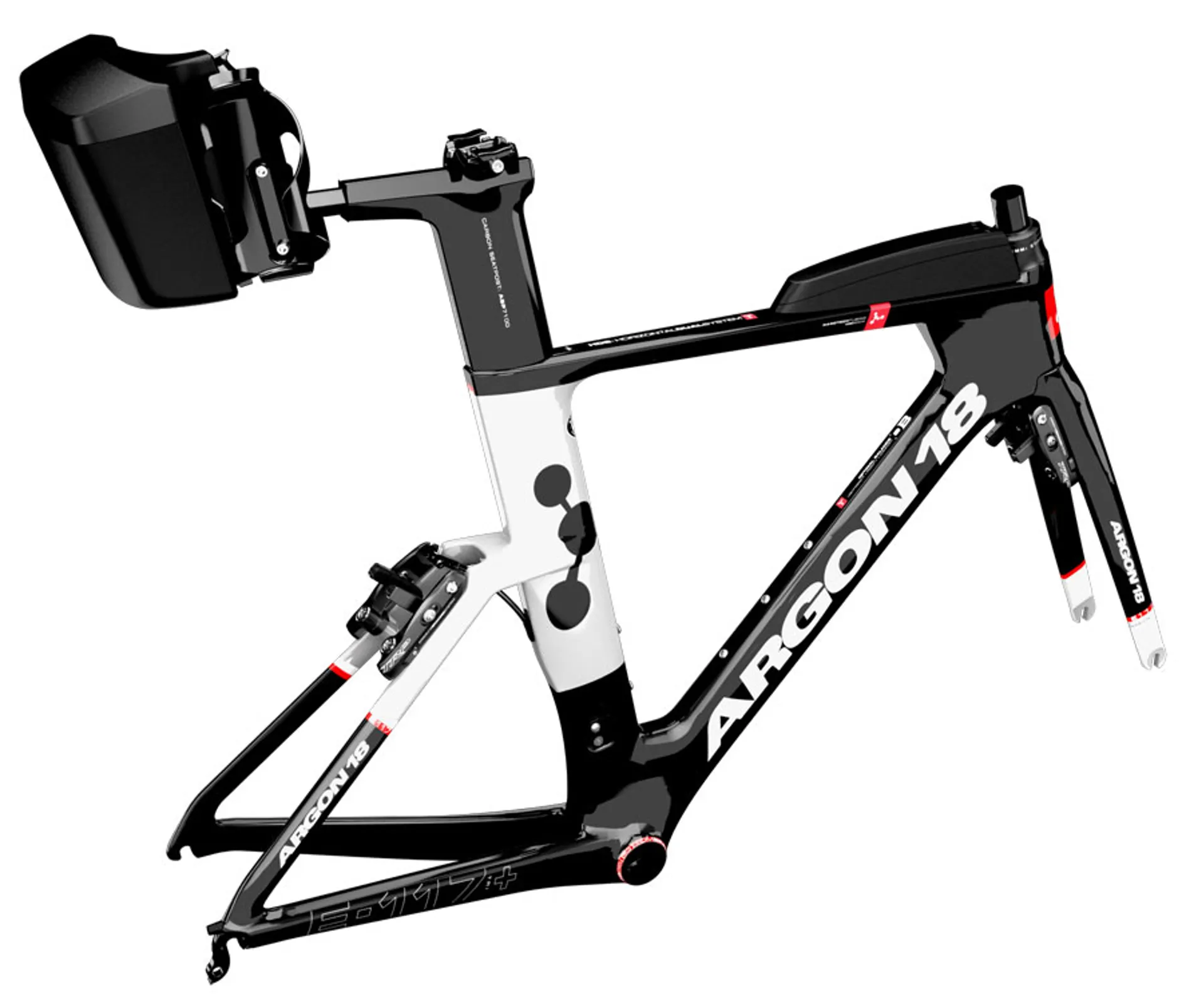

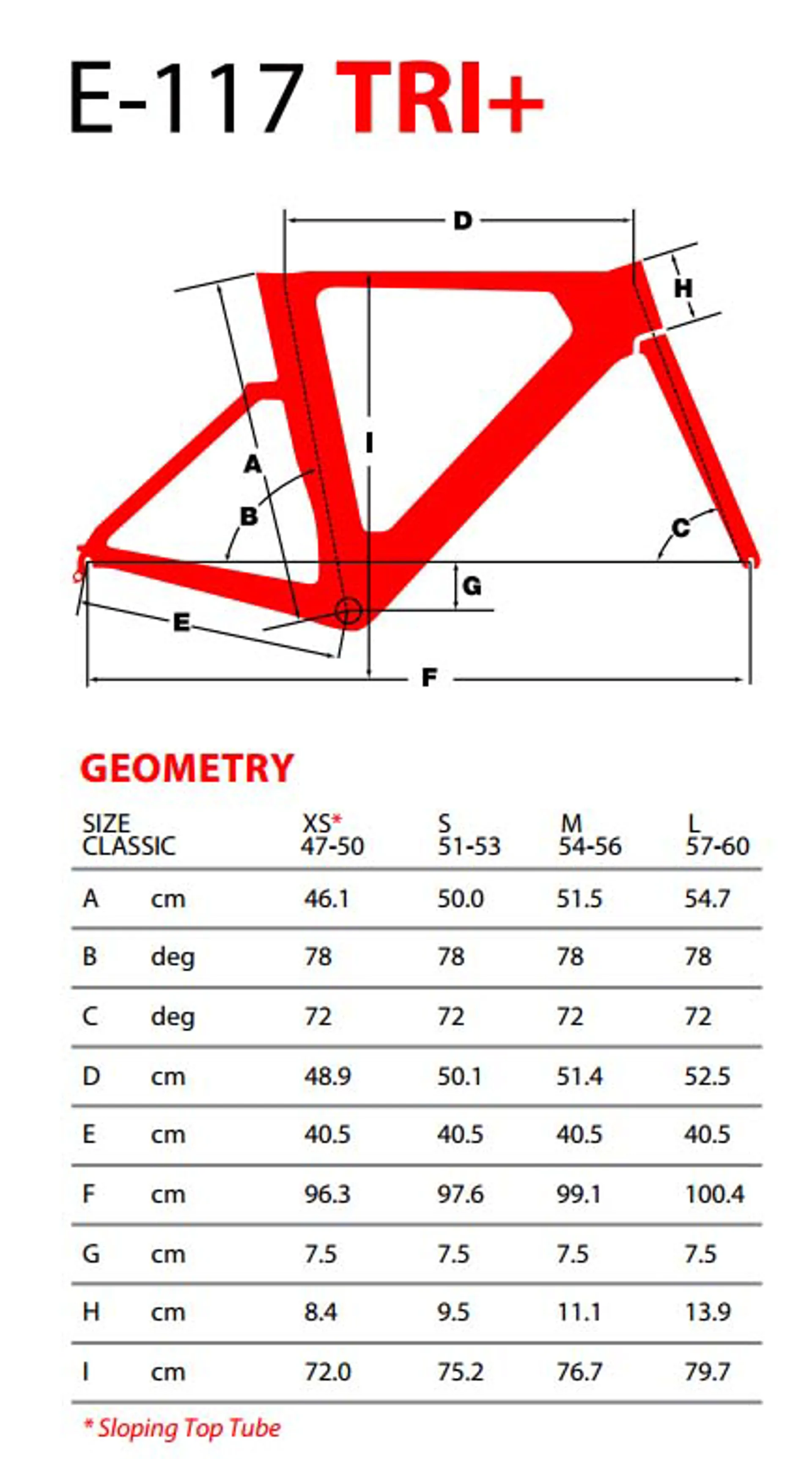

Argon-18's E-117 Tri Plus frameset is designed to offer a high level of performance to aspiring triathletes, with clear aerodynamic enhancements to help you rise to the challenge. The frames tubing is narrow and deep, with TRP brake callipers concealed behind the forks and seatstays, to really optimise the aerodynamic advantage offered by this frame. A riders positioning is also a big aspect of aerodynamics when cycling, so Argon-18 don't just deliver an aerodynamically shaped frameset, but a frame that encourages aerodynamic positioning when riding. The E-117 Tri Plus is designed with a compact aerodynamic geometry, positioning the rider further forward and lower for optimal aerodynamic profile when riding, whilst making sure that weight distribution remains optimal. The E-117 Tri Plus is designed with Argon-18's 3D head tube system, offering 3 different handlebar heights, so each individual rider can find their best position for comfort and performance. This is an important consideration when trying to maintain a physically demanding aero-position for extended periods of time and a key part of how the E-117 helps riders achieve a comfortable aerodynamic position making a significant difference to performance. The 3D head tube system also has the advantage of being significantly stiffer and more aerodynamic than a traditional steerer tube spacing system for overall improved handling and speed.

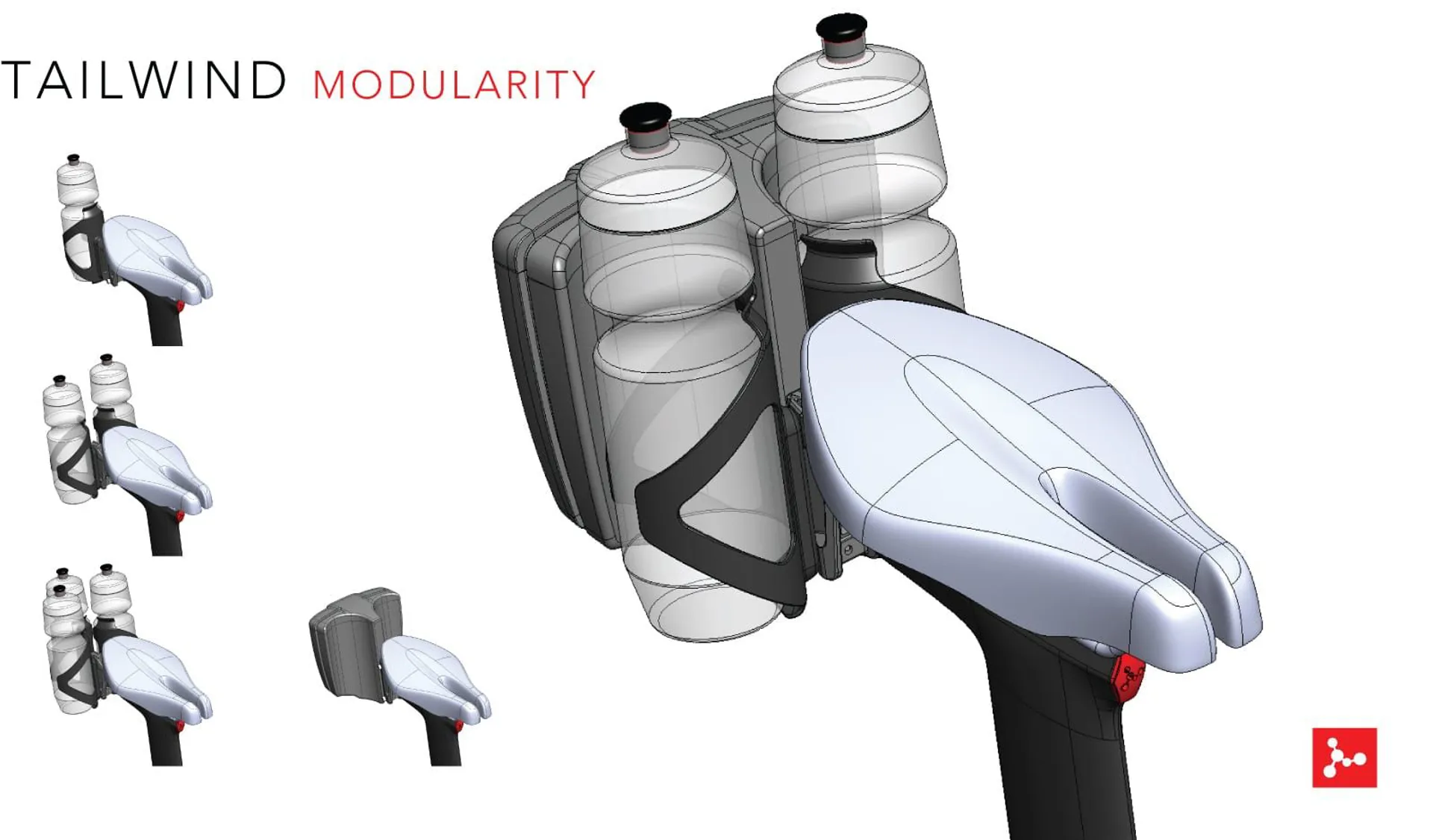

A frameset developed with a strong aerodynamic focus, the storage solutions provided by the E-117 Tri Plus are all neatly positioned to minimise air resistance. The “Tailwind” seatpost box sits centrally behind the saddle and therefore the riders thighs and lower back, providing highly aerodynamic storage. The top tube box is precision designed to tuck right up to headset, resulting in it being sweetly streamlined and looking like it's just an extension of the top tube. Last but not least the Aeroz integrated cockpit hydration solution, is the perfect answer to staying in an aero position and staying hydrated for long periods of time. There's no use in creating a highly competitive frame with fine-tuned aerodynamic advantages, to then to attach a bunch of ill-fitted and highly air resistant storage solutions of it. The benefit of the E-117 Tri Plus is that all its storage is co-designed with the frame, an integrated approach that makes the E-117 super long distance ready without compromising its performance.
In-keeping with Argon 18's “Optimal Balance” philosophy, this frameset doesn't just excel in being aerodynamic, as although aerodynamic enhancements are the key factor for performance in a Triathlon, excelling in all areas is what elevates a truly excellent Triathllon frame above the rest. The E-117 Tri Plus delivers in every aspect of frame performance, remaining lightweight, rigid, responsive and comfortable, all characteristics a genuinely top level frame must possess. The frame, brakes, forks and seatpost come in at less than 2kg altogether, which is very light for a Triathlon frameset. The Tri Plus frame, seatpost and fork are comprised of a higher grade carbon lay-up than the E-117, making for a stronger and lighter frameset.
Argon-18's Horizontal dual system means that the carbon lay-up in the lower and frontal tubing of the bike is stiffer than the lay-up of the upper and rear tubing. This means the E-117 Tri Plus delivers impressive power transfer and handling, being rigid and responsive where it needs to be and providing comfort and therefore improved rider endurance, through being more flexible in the area around the seat tube. This lay-up process is expensive, time consuming and painstakingly detailed, but the result is a frame that takes all the areas of cycling performance to the next level. Ideal for riders who really want to push themselves and test their endurance, the E-117 Tri Plus frameset delivers excellent performance, with its aerodynamic storage solutions allowing you to ride harder for longer, refuelling when you need to.
