Brand:Mondraker
Code:010.23211

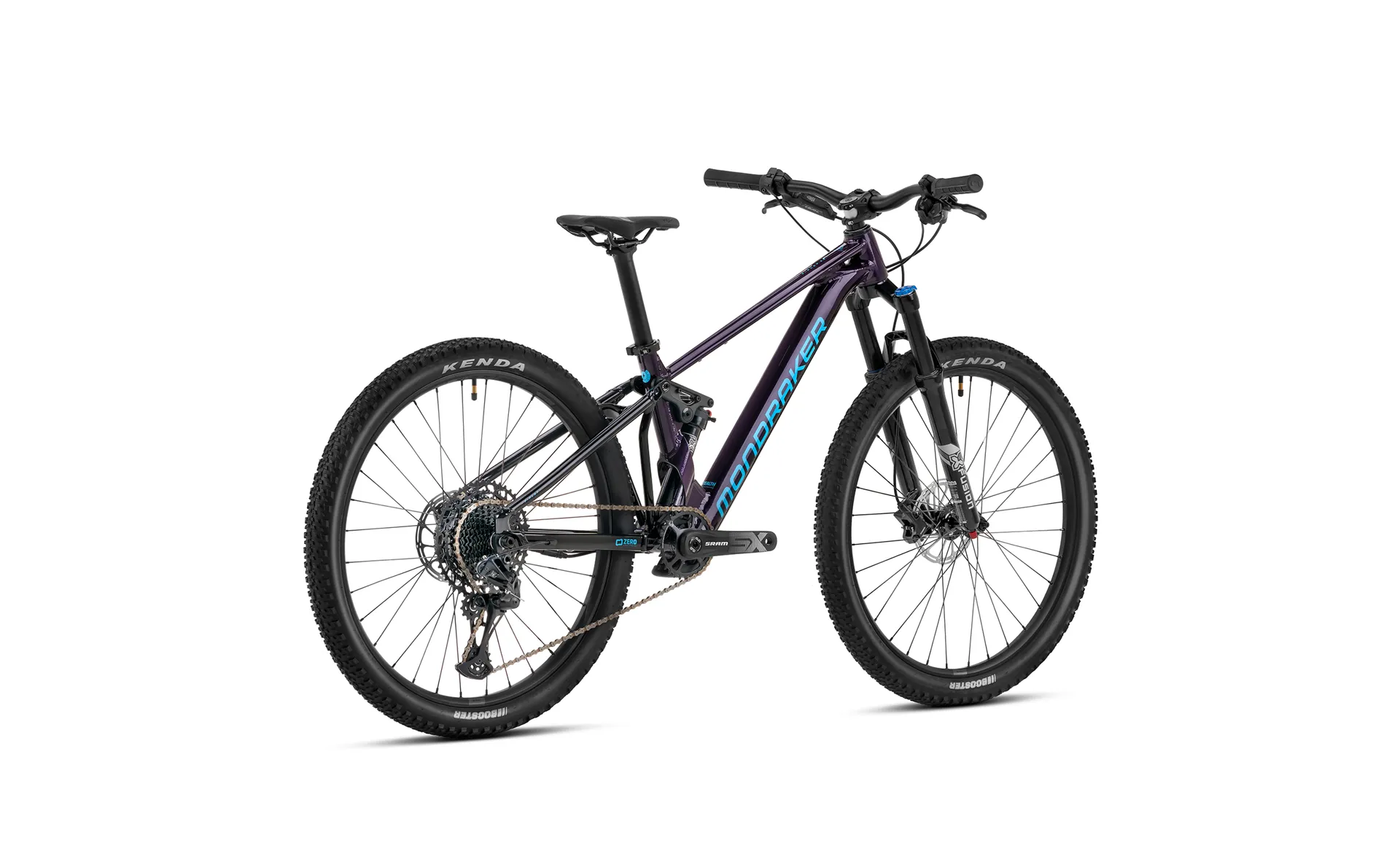

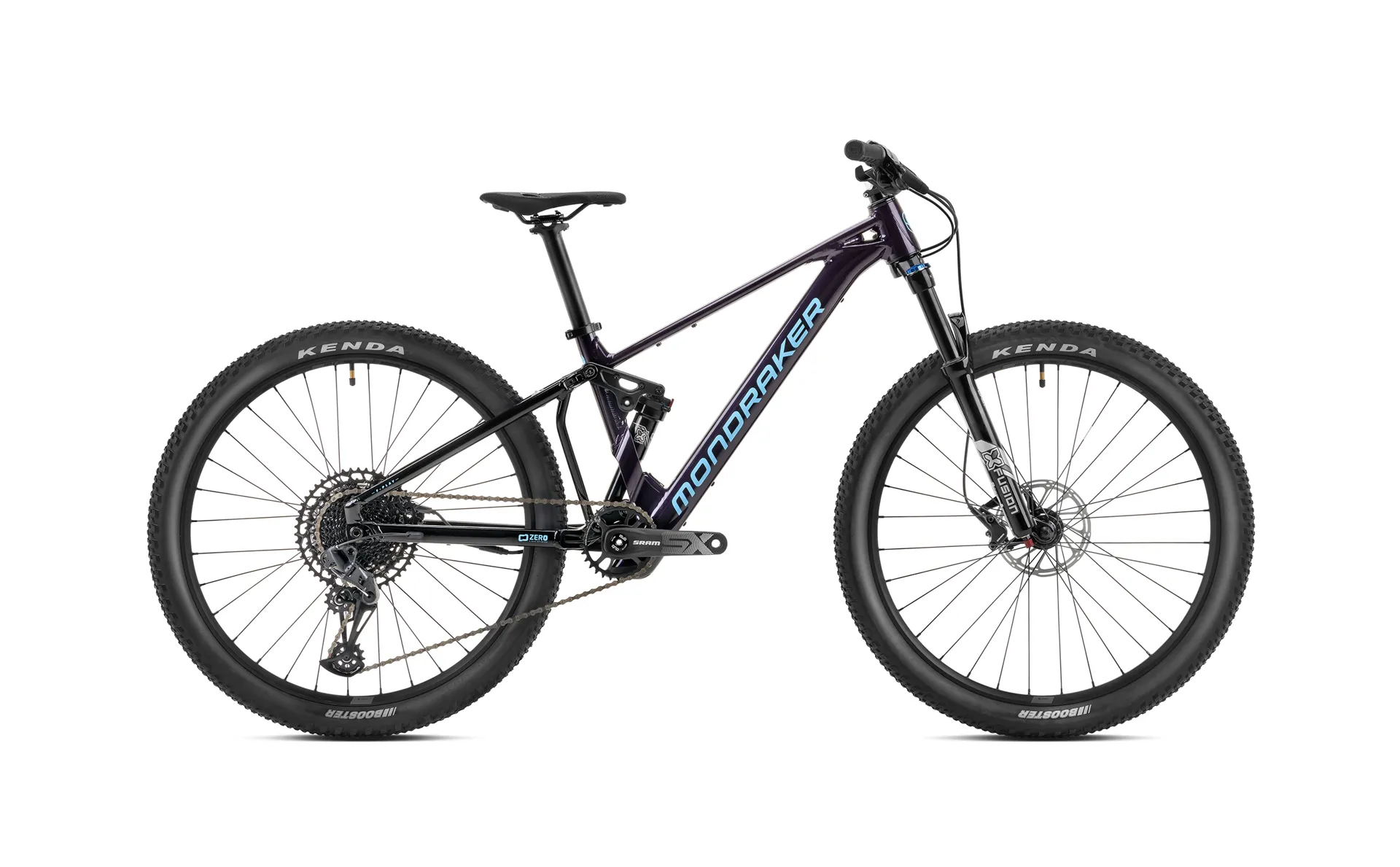

For 2023 season Mondraker introduce a new e-kids range featuring Mahle-eBikemotion X35 hub motors. From 20 to 26” hardtail and 24” and 26” full suspension, the new Play and F-Play range are boosted with up to 40Nm maximum torque and 25 km/h max pedal assistance with internal 250Wh battery. With the Mahle e-Bikemotion mobile app and our kids’ custom software it’s never been so easy to configure the different motor riding parameters to our kid’s liking in a very easy and intuitive way, also featuring offline navigation. All F-Play and Play model batteries are removable but not interchangeable. Maximum torque and speed are also limited for the 20” Play model.
Frame
F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Sizes
One size: 350mm
Rear shock
X-Fusion 02PRO R, 210x55mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings
Shock settings
A-Tune light compression
Fork
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Seatpost
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
Saddle
SDG Fly JR
Front brake
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake
Brake lever
Sram Level, tooled reach adjust, lever pivot bushings
Rims
MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Front hub
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub
Mahle-Ebikemotion X-35
Front tire
Kenda Booster 26x2.4 single compound 30TPI, wire bead
Rear tire
Crankset
Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm
Rings
30T, steel, X-Sync
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram SX Eagle, 12s, Powerlock
Rear derrailleur
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette
Sram XG-1230, 11-50T, 12s
Derailleur hanger
Mondraker M073
Weight
16,9 kg
Display
Mahle-Ebikemotion
Motor
Battery
Mahle-Ebikemotion Internal 250Wh
