It’s always been Mondraker' obsession to build bikes with racing DNA
It’s always been Mondraker' obsession to build bikes with racing DNA
Mondraker

Mondraker F-Podium Carbon DC R - Blue/Carbon/Silver

£7,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

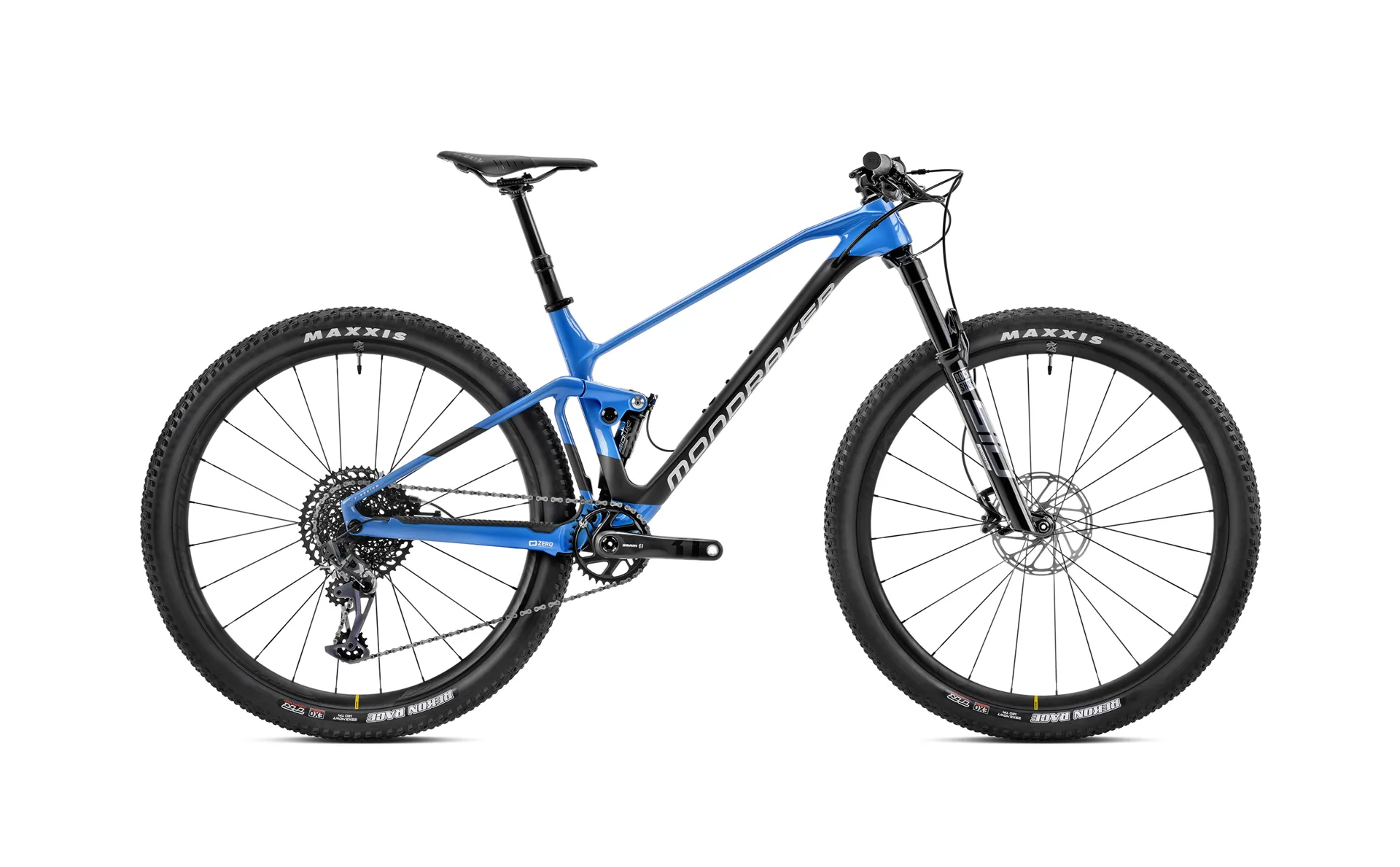

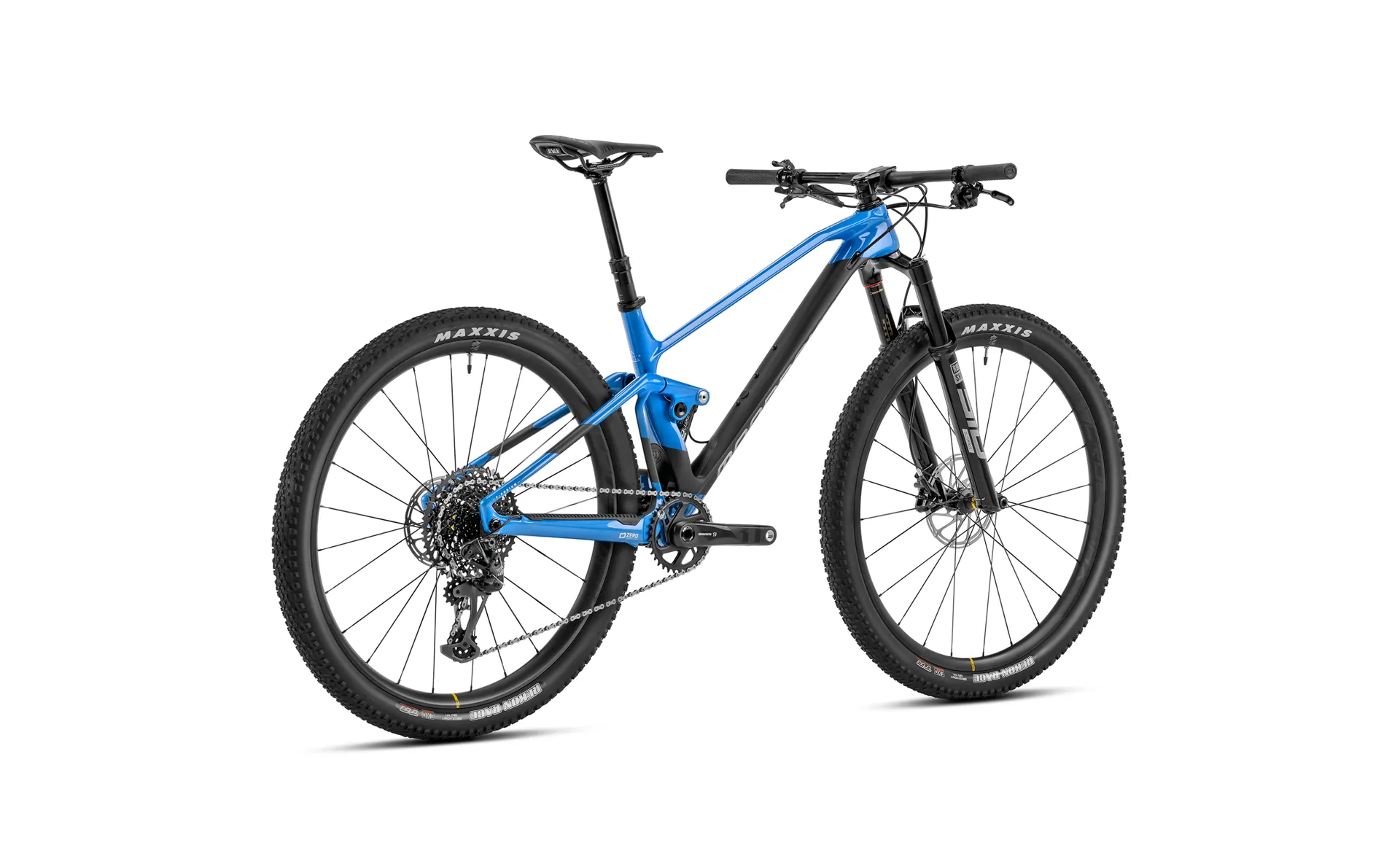

Mondraker F-Podium Carbon DC R - Blue/Carbon/Silver

Brand:Mondraker

Code:010.2306BS

MONDRAKER ARE CLEAR ABOUT THEIR PHILOSOPHY: MOUNTAIN BIKES ARE FOR FUN!

It’s always been Mondraker' obsession to build bikes with racing DNA so they designed the F-PODIUM DC R so that you can push yourself to the limit and let the bike get on with the rest.

With its STEALTH AIR FULL CARBON frame, ZERO SUSPENSION SYSTEM and FORWARD GEOMETRY you get the most balanced bike possible to compete at the very highest level. Whether you live to find your limits on the climbs or push the envelope on the downs the F-PODIUM DC R just gets on with it. This bike lives to go fast, all the time. Its 115mm of rear travel mated to the RockShox SID Ultimate RL fork offering 120mm at the front provides you with all the assurance you need so that you don't give up a second of hard-won time on the descents that you just fought so hard for on the last climb.

STEALTH AIR:

is the most refined and lightest Carbon manufacturing process at Mondraker.


ZERO SUSPENSION:

is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.


FORWARD GEOMETRY:

has proven to be the pioneering geometric benchmark for the most advanced high-performance bikes, and this is one of our most important and unique proprietary technologies today. Every year we continue to refine the concept and for 2023 we have implemented slight geometry changes to improve performance even further, increasing riding efficiency and control in bike handling.



Technical Information

Technical specs

frame

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

sizes

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

rear shock

Rear shock

Rockshox SID Luxe Ultimate RLR DebonAir, 185x50mm. Settings: OneLoc, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

shock settings

Shock settings

Light compression, medium rebound, Lockout 430, 1 Token

fork

Fork

Rockshox SID Ultimate RL 29, 120mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLoc, Low-speed rebound, air preload

headset

Headset

AcrosAZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom

fork remote

Fork remote

RockShox OneLoc

stem

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm

handlebar

Handlebar

ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

grips

Grips

ONOFF Desert, 1lock-on, 135mm

seatpost

Seatpost

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

saddle

Saddle

Fizik Antares R7

front brake

Front brake

Sram Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

rear brake

Rear brake

Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

brake lever

Brake lever

Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings

rims

Rims

Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

spokes

Spokes

24 straight-pull double butted spokes

front hub

Front hub

Infinity hub, Boost 15x110mm, IS 6 bolts

rear hub

Rear hub

Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

front tire

Front tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

rear tire

Rear tire

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

crankset

Crankset

Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm

rings

Rings

34T, CNC-machined alloy, X-SYNC 2

bottom bracket

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

chain

Chain

Sram GX Eagle, 12s, Powerlock

rear derrailleur

Rear derrailleur

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

shift levers

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

casette

Casette

Sram XG-1275, 10-50T, 12s

derailleur hanger

Derailleur hanger

Sram UDH

weight

Weight

11,8 kg



Sizing Information
Frame sizeSMLXL
ASeattube length390 mm420 mm470 mm510 mm
BToptube length583 mm603mm629 mm654 mm
CBottom bracket drop-31-31-31-31
DBottom bracket height337 mm337 mm337 mm337 mm
EChainstay length432 mm432 mm432 mm432 mm
FSeat tube angle70.8°70.8°70.8°70.8°
GEffective seattube angle75.1°75.1°75.1°75.1°
HHeadtube angle66.8°66.8°66.8°66.8°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1146 mm1167 mm1191 mm1217 mm
KHeadtube length85 mm90 mm100 mm115 mm
LReach430 mm450 mm470 mm490 mm
MStack577 mm582 mm591 mm605 mm
