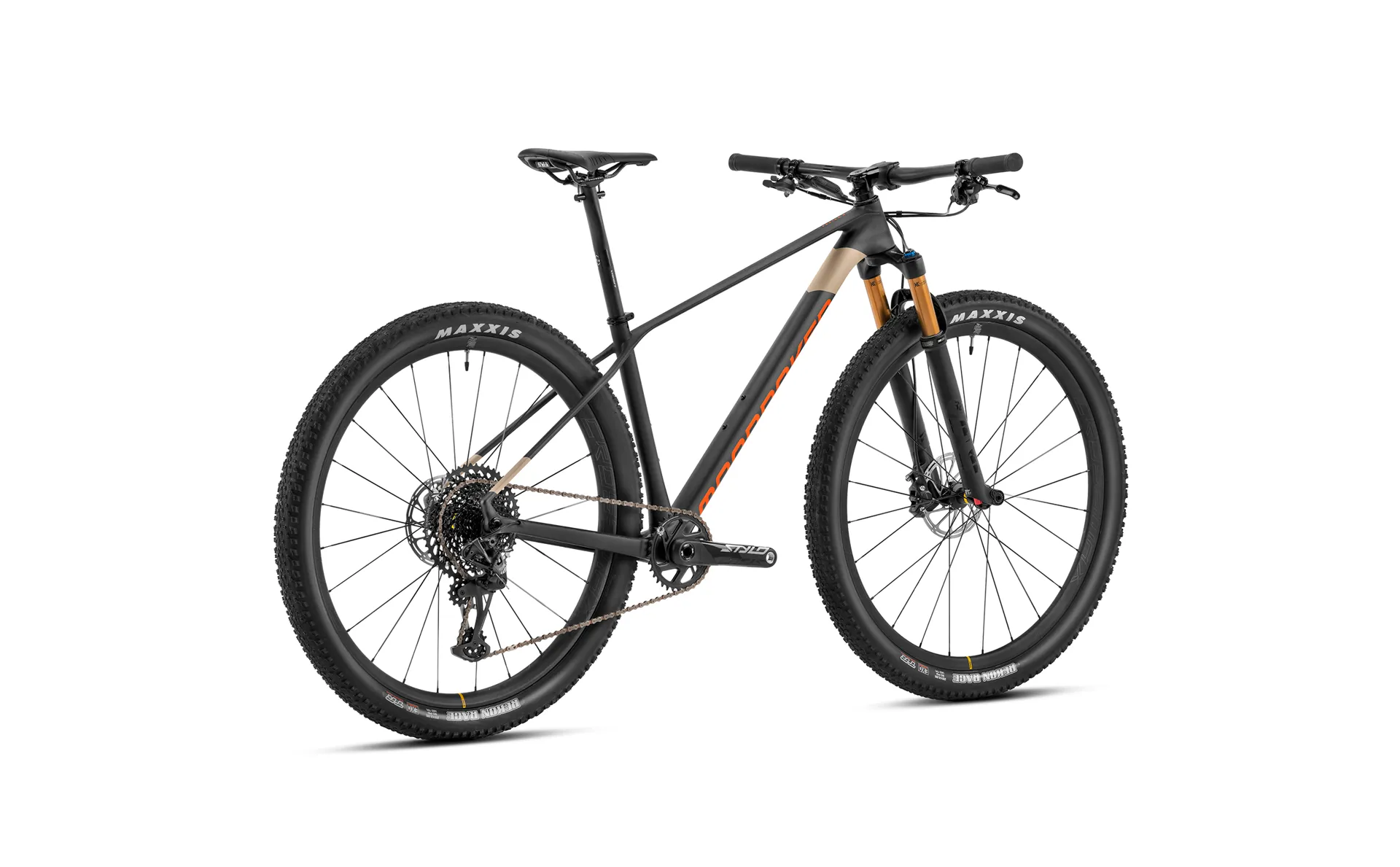

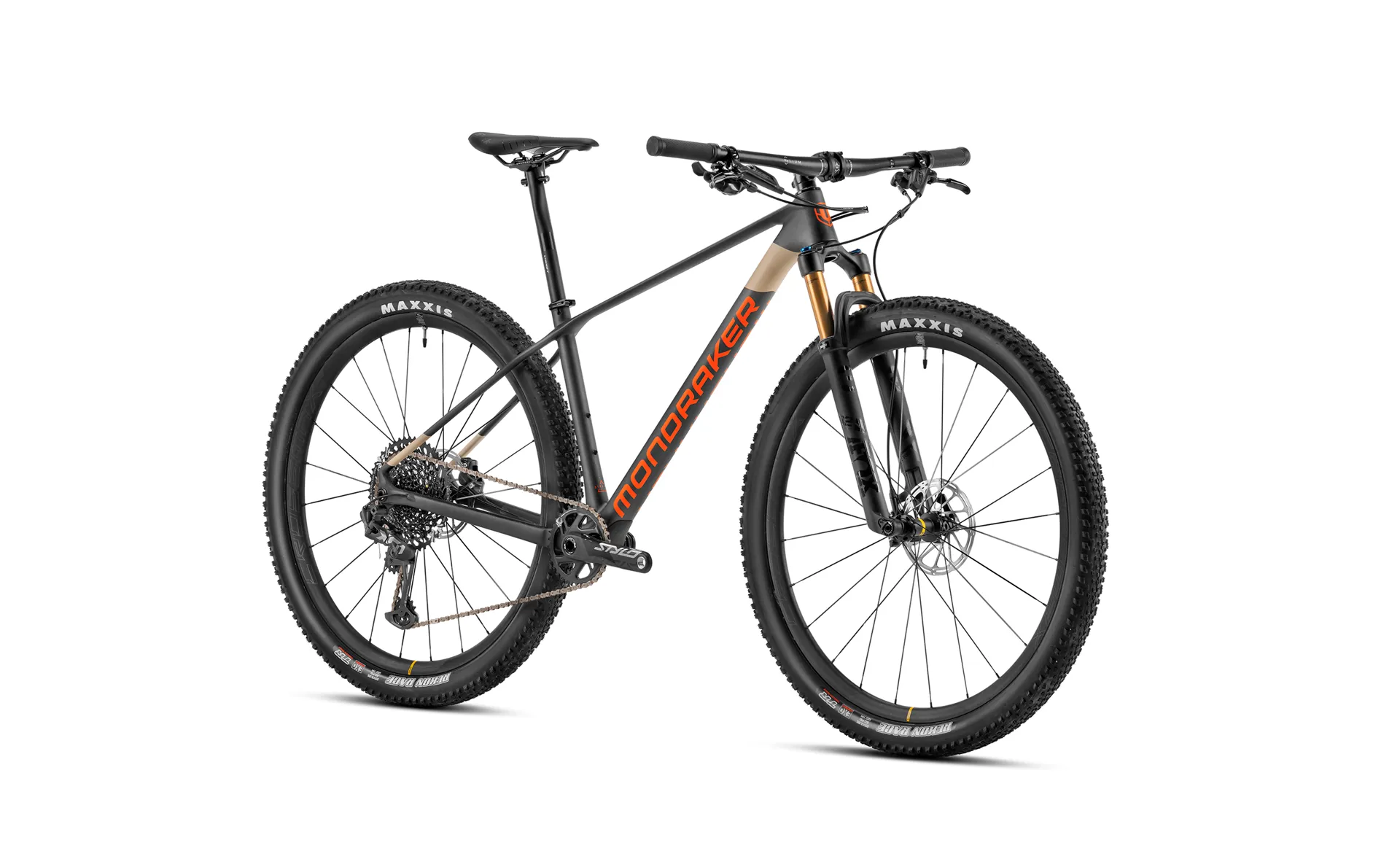

Mondraker Podium Carbon R 29 - Silver/Grey/Orange

Brand:Mondraker

Code:010.2304

STEALTH AIR CARBON and XC FORWARD GEOMETRY tailored to the production bike with the lightest frame in the world, are credentials enough to show that the PODIUM R is the heir to the best that we are capable of at Mondraker. Weighing less than 9 kilos, it’s the ideal bike for riders who want to get the most out of every ride, as well as for those who want to compete at the highest level, either at a local weekend race or in a UCI points event, or even in a World Cup with the best riders on the planet!
Technical Information

Technical specs

frame

Frame

Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,

sizes

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

fork

Fork

Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload

headset

Headset

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

fork remote

Fork remote

Fox single pull

stem

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm

handlebar

Handlebar

Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

grips

Grips

Onoff Desert, 1lock-on, 135mm

seatpost

Seatpost

Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm

saddle

Saddle

Fizik Antares R7

front brake

Front brake

Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

rear brake

Rear brake

Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

brake lever

Brake lever

Sram Level TLM, Direct Link actuation, tooled reach adjust, lever pivot bushings

rims

Rims

Mavic Crossmax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes

spokes

Spokes

Mavic straight-pull double butted, contactless lacing

front hub

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

rear hub

Rear hub

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

front tire

Front tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

rear tire

Rear tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

crankset

Crankset

Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm

rings

Rings

34T, steel, X-Sync 2

bottom bracket

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

chain

Chain

Sram SX Eagle, 12s, Powerlock

rear derrailleur

Rear derrailleur

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2

shift levers

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

casette

Casette

Sram XG-1275, 10-50T, 12s

derailleur hanger

Derailleur hanger

Sram UDH

weight

Weight

9,2 kg



Sizing Information

Frame sizeSMLXL
ASeattube length390 mm420 mm470 mm510 mm
BToptube length590 mm611mm632 mm650 mm
CBottom bracket drop-65 mm-65 mm-65 mm-65 mm
DBottom bracket height300 mm300 mm300 mm300 mm
EChainstay length430 mm430 mm430 mm430 mm
FSeat tube angle73°73°73°73°
GEffective seattube angle74.5°74.5°74.5°74.5°
HHeadtube angle68,5°68,5°68,5°68,5°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1107 mm1128 mm1150 mm1170 mm
KHeadtube length85 mm90 mm100 mm115 mm
LReach425 mm444 mm463 mm477 mm
MStack598 mm602 mm611 mm625 mm
