the S120 range are Whyte's new carbon fibre framed 29er Cross Country full suspension mountain bikes, introduced at the end of 2018 to replace the long loved T129 range.
the S120 range are Whyte's new carbon fibre framed 29er Cross Country full suspension mountain bikes, introduced at the end of 2018 to replace the long loved T129 range.
Whyte

Whyte V1 S120 C RS Midnight Red/Bronze

£3,499.00
Click & Collect for Free
Earn
 in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

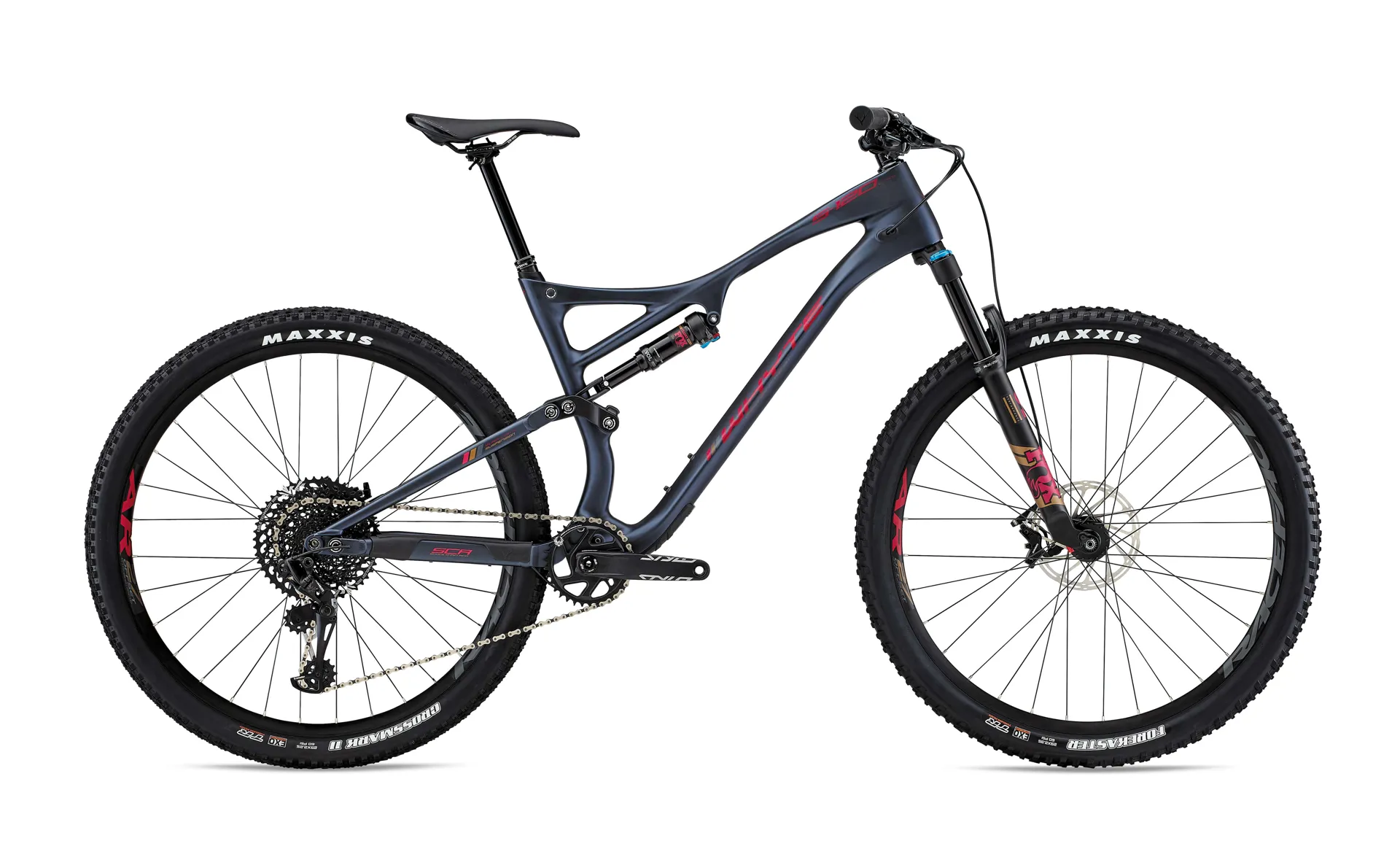

Whyte V1 S120 C RS Midnight Red/Bronze Information

Brand : Whyte

Code : WS120CRS

the brand-new S-120 frame takes everything Whyte learnt from developing the multi-award-winning S-150 suspension system and applies it to this immensely capable new 120mm platform.

The S-120 is a perfect replacement for the iconic T129, which gave Whyte its 1st Bike Of The Year award. Designed to be an all-round XC/Trail bike from epic marathons to a flat our blast down your local single track, this bike will allow you to do it all.

The S-120 geometry was design to have a short 44mm offset fork and this combined with the all new Fox 34 SC, gives amazing handling. This fork was designed to be the ultimate Trail 120mm 29er fork.

This all is coupled with the awesome SRAM 12 speed Eagle GX groupset, providing an immense range of gears.

This bike is the one Cris has most been coveting from the updated 2019 range, as for a lightweight do everything mountainbike that's capable of riding all those lovely man made trails, yet light and nible enough for long days out in the saddle across the natural trails around the Cris' fave playgrounds of the Chilterns, the South Downs, the Peak District and the Lakes,  as well as being suitable for rocking up to those not so chilled out race days, this bike is designed to do the lot.  Just add fitness and skill and you've got the perfect mountaibke.

Technical Information

COLOUR

Matt Midnight with Dark Red/Bronze/Grey

FRAME

Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube, Intergrip Seat Clamp System, Alloy Symmetrical SCR Rear Triangle and 148mm Boost Dropouts

FORK

Fox Float Performance SC 34, Step Cast, 29", 120mm Travel, 44mm Offset, GRIP 3-Pos Damper, Tapered Steerer, Black Coating, 110mm x 15mm Boost, E-Thru Axle

REAR SHOCK

Fox Float DPS, Performance, Black Coating, Rebound Adjustment and 3pos Adjust Evol LV

HEADSET

FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings

REAR HUB

Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, Micro Engagement 6 Pawl, XD Driver, 32 Hole

FRONT HUB

Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 32 Hole

SPOKES

DT Swiss Factory 2.0mm, Black Stainless, Brass Nipples

RIMS

RaceFace AR-27, Offset, 27mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole

TYRE

Maxxis Forekaster TR 29" x 2.3" 60TPI Dual Compound, EXO Sidewall Protection, Front

Maxxis Crossmark II TR 29" x 2.25" 60TPI Dual Compound, EXO Sidewall Protection, Rear

SHIFT LEVERS

SRAM GX Eagle, MMX, 12 Speed

FRONT MECH

N/A

REAR MECH

SRAM GX Eagle, 12 Speed

CASSETTE

SRAM XG-1275 Eagle, 10-50, 12 Speed

CHAIN

SRAM Eagle, 12 Speed

CRANKSET

SRAM Stylo 7K Eagle, X-SYNC 2, Direct Mount 34T, DUB, 175mm, Boost, 12 Speed

BOTTOM BRACKET

SRAM DUB, BSA, 73mm

SEATPOST

Bike Yoke Revive, 30.9mm, S 125mm Travel, M/L/XL 160mm Travel, Trigger Remote with MMX attachment

SADDLE

Whyte Custom Dual Density, Triple Panel Design

HANDLEBAR

Whyte 6061 Alloy, 15mm Low Rise, 31.8mm, 780mm Wide

STEM

Whyte Gravity Stem, 40mm Extension

GRIPS

Whyte Lock-on V Grip

BRAKES FRONT

SRAM Guide RS, 4 Pot, 180mm Rotor

BRAKES REAR

SRAM Guide RS, 4 Pot, S/M/L 160mm, XL 180mm Rotor, Internal Routing

BRAKE LEVERS

SRAM Guide RS, MMX

PEDAL

None

WEIGHT

13.3Kg



Sizing Information

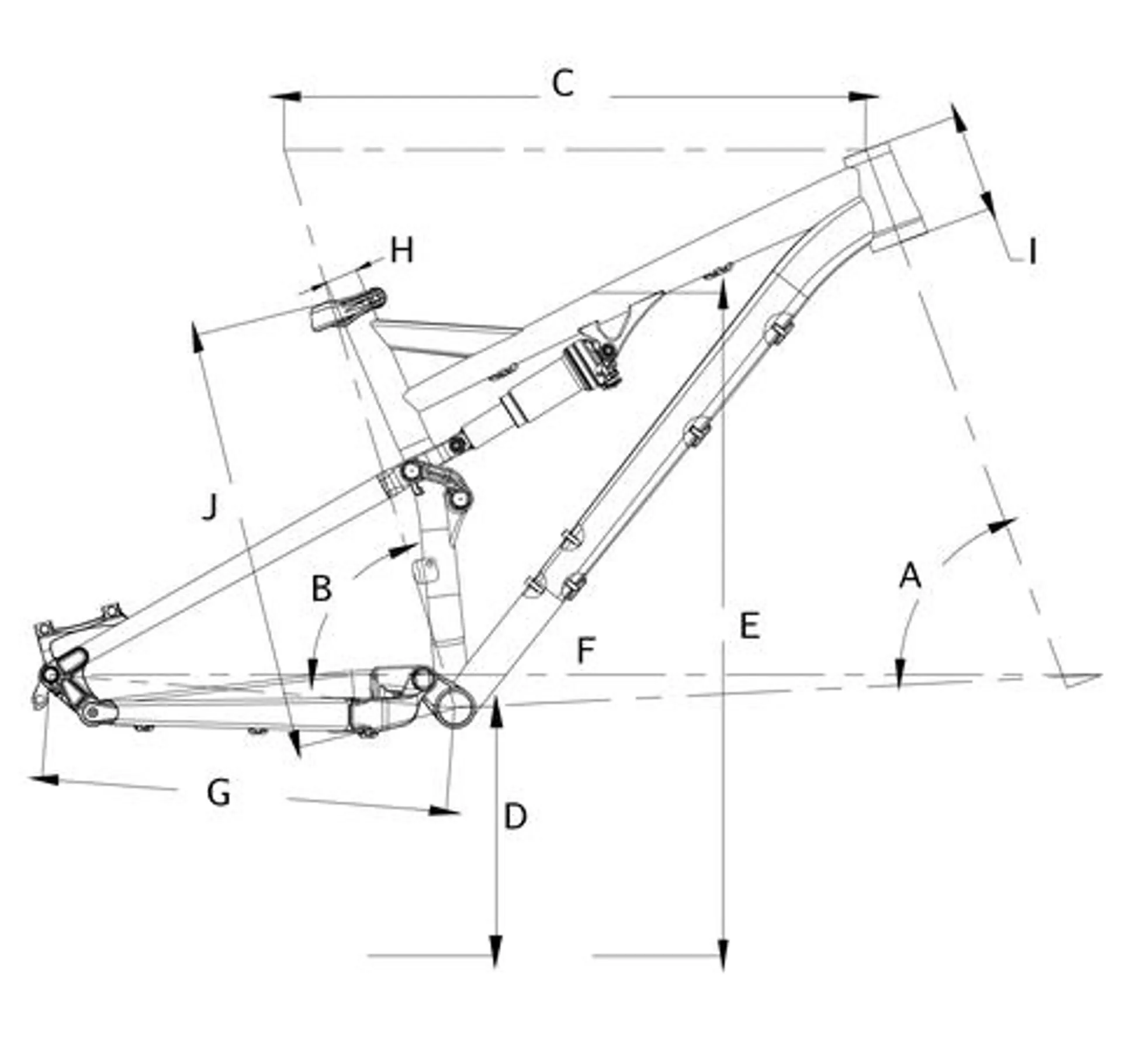

Note: see the 3rd picture to see the S120 geometry diagram



SIZE S M L XL
A
HEAD TUBE ANGLE
65.6 65.6 65.6 65.6
B
SEAT TUBE ANGLE
75 75 75 75
C
TOP TUBE HORIZONTAL
582 612 640 669
D
BB HEIGHT ABOVE GROUND
340 340 340 340
E
STAND OVER HEIGHT
796 802 808 815

WHEEL BASE
1168 1198 1227 1256
G
CHAIN STAY LENGTH
430 430 430 430
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
112 125 140 150
J
SEAT TUBE LENGTH
406.4 431.8 457.2 482.6
STACK 604 616 627 639
REACH 432 456 480 504
